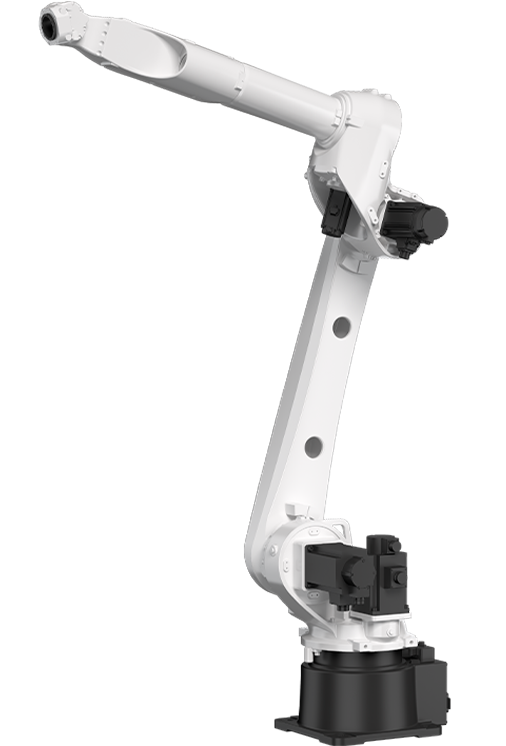

Payload | 12 kg | Weight | About 287 kg | Reach | 2258 mm | |
DOF | 6 | IP Rating | IP65(Wrist IP67) | Drive Mode | AC servo | |
Repeatability | ±0.03 mm | Operating Temperature | 0℃~+40℃ | Storage Temperature | -10℃ ~ +55℃ | |
Noise Level | ≤75 dB(A) | AIR | 2-Φ12, 8bar | Signal | 2-12 channels (30V, 0.5A) | |
Mounting Method | Floor, Ceiling | |||||
Motion Parameters | Axis | Range of Motion | Maximum Speed | |||
Axis 1 | -180° to +180° | 200°/s | ||||
Axis 2 | -99° to +156° | 185°/s | ||||
Axis 3 | -200° to +75° | 180°/s | ||||
Axis 4 | -215° to +215° | 430°/s | ||||
Axis 5 | -225° to +225° | 460°/s | ||||
Axis 6 | -450° to +450° | 730°/s | ||||
Payload | 25 kg | Weight | About 275 kg | Reach | 1836 mm | |
DOF | 6 | IP Rating | IP65(Wrist IP67) | Drive Mode | AC servo | |
Repeatability | ±0.03 mm | Operating Temperature | 0℃~+40℃ | Storage Temperature | -10℃ ~ +55℃ | |
Noise Level | ≤75 dB(A) | AIR | 2-Φ12, 8bar | Signal | 2-12 channels (30V, 0.5A) | |
Mounting Method | Floor, Ceiling | |||||
Motion Parameters | Axis | Range of Motion | Maximum Speed | |||
Axis 1 | -180° to +180° | 200°/s | ||||
Axis 2 | -99° to +156° | 185°/s | ||||
Axis 3 | -200° to +75° | 180°/s | ||||
Axis 4 | -215° to +215° | 430°/s | ||||
Axis 5 | -225° to +225° | 430°/s | ||||
Axis 6 | -450° to +450° | 730°/s | ||||
Payload | 35 kg | Weight | About 275 kg | Reach | 1836 mm | |
DOF | 6 | IP Rating | IP65(Wrist IP67) | Drive Mode | AC servo | |
Repeatability | ±0.03 mm | Operating Temperature | 0℃~+40℃ | Storage Temperature | -10℃ ~ +55℃ | |
Noise Level | ≤75 dB(A) | AIR | 2-Φ12, 8bar | Signal | 2-12 channels (30V, 0.5A) | |
Mounting Method | Floor, Ceiling | |||||
Motion Parameters | Axis | Range of Motion | Maximum Speed | |||
Axis 1 | -180° to +180° | 180°/s | ||||
Axis 2 | -99° to +156° | 180°/s | ||||
Axis 3 | -200° to +75° | 180°/s | ||||
Axis 4 | -215° to +215° | 420°/s | ||||
Axis 5 | -225° to +225° | 360°/s | ||||
Axis 6 | -450° to +450° | 450°/s | ||||
