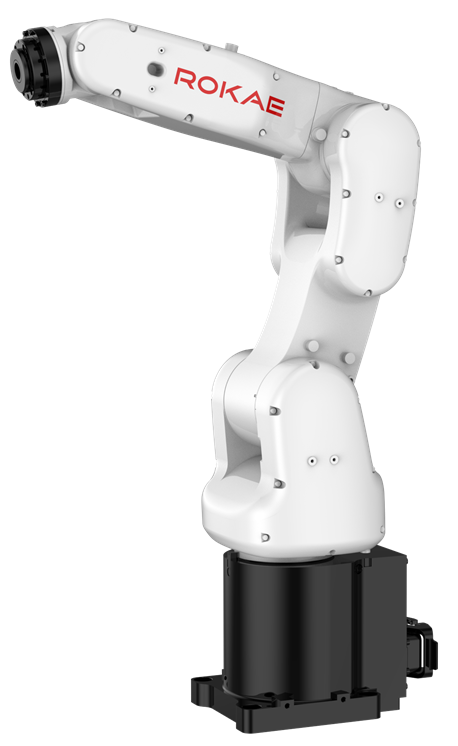

NB4 Series Industrial Robot
Compact Robot with High Protection Rating
○ Compared with the first-generation XB4 series, NB4 is more compact, lighter, and more suitable for scenarios with demanding space requirements such as electronics factories and machine tools.
○ Due to the faster running speed and shorter takt time, combined with the industry-leading repeatability, NB4 guarantees high efficiency and high precision.
○ The NB4 series features an overall IP67 protection rating for long-term stability and reliability even in the most demanding environment.
NB4 Series
Request A Demo
Data Overview
NB4h-4/0.58 Specifications

Payload

4 kg

Weight

About 22 kg

Reach

580 mm

DOF

6

IP Rating

IP67

Drive Mode

AC servo

Repeatability

±0.02 mm

Operating

Temperature

0℃~+40℃

Storage

Temperature

-10℃~+55℃

Noise Level

≤75 dB(A)

AIR

4-Φ4,5bar

Signal

8channels

(30V,0.5A)

Mounting Method

Floor, Ceiling


Motion

Parameters

Axis

Range of Motion

Maximum Speed

Axis1

-170°~+170°

450°/s

Axis2

-90°~+130°

318°/s

Axis3

-200°~+55°

288°/s

Axis4

-170°~+170°

550°/s

Axis5

-120°~+120°

450°/s

Axis6

-360°~+360°

612°/s


Discover the variety of automation solutions by ROKAE
Key Industries for NB4 Series
How do we help our customers?
Applications for NB4 Series
Downloads for NB4 Series
